Extract Data From Maps QGIS

By | September 25, 2022

In this blog post I’ll show you how to extract data from maps using QGIS to georeference a map image and identify data points.

The steps are:

  1. Start with a map image containing data you want to capture, such as marked locations
  2. Add a base map to QGIS that you will load the map image on to
  3. Import the map image and ‘georeference’ to get correct alignment
  4. Create a data layer in QGIS and select data points
  5. Export data points extracted from the map to a separate file

The Starting Map

I’m assuming you have a raster map image that you want to extract location data from. In this example I’ll be using the drop pattern of airborne landings on D-Day.

This map image has an underlying map image with identifyable locations and features. We will use these later to georeference the map image against an underlying base map.

extract data from maps - starting map

Add Basemap

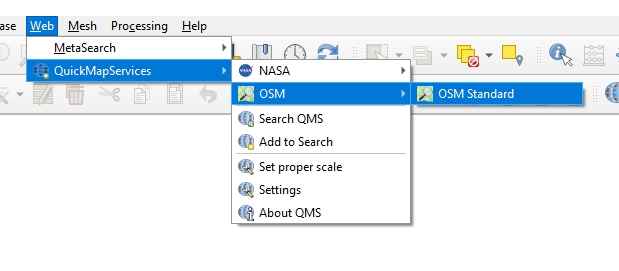

If you don’t have it already you’ll need to install the QuickMapServices plugin.

With that plugin installed you can import the Open Streetmap Standard base map.

extract data from maps - basemap

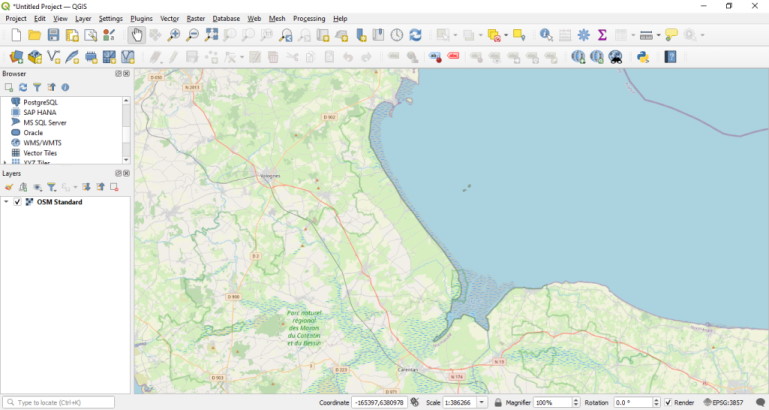

With the base map imported we can navigate to roughly the right location for our map image.

Normandy

Import Map Image

We can now import the map image that we are interested in. To do this we will use the ‘Georeferencer‘.

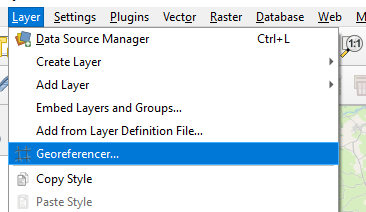

Georeferencer

From the Georeferencer we need to Open Raster and select the map image we want to load.

Georeferencer - Open Raster

Once we have loaded the map image we can identify and apply the georeferencing points.

Apply Georeferencing Points

The georeferencing process involves selecting features or landmarks on the map image and then finding them in the corresponding location on the base map.

Read more about the basics of georeferencing

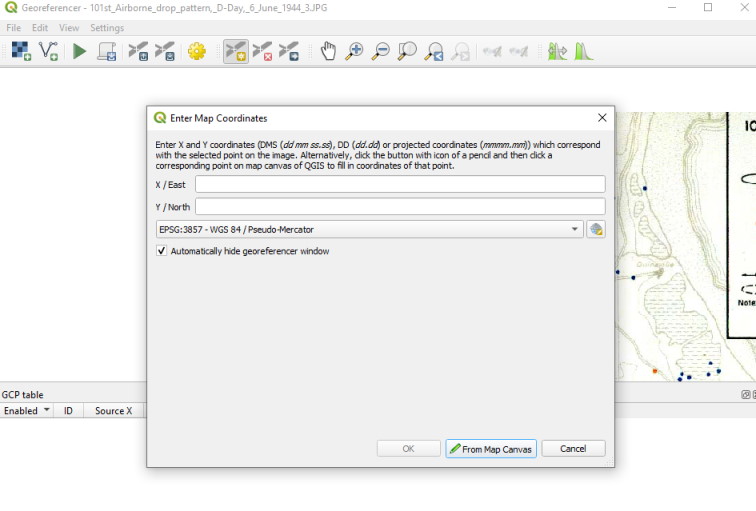

Georeferencer - add points

You’ll typically need to add at least four points, but check the Georeferencer documentation for guidelines. More points enable more accurate registration between the map image and the base map.

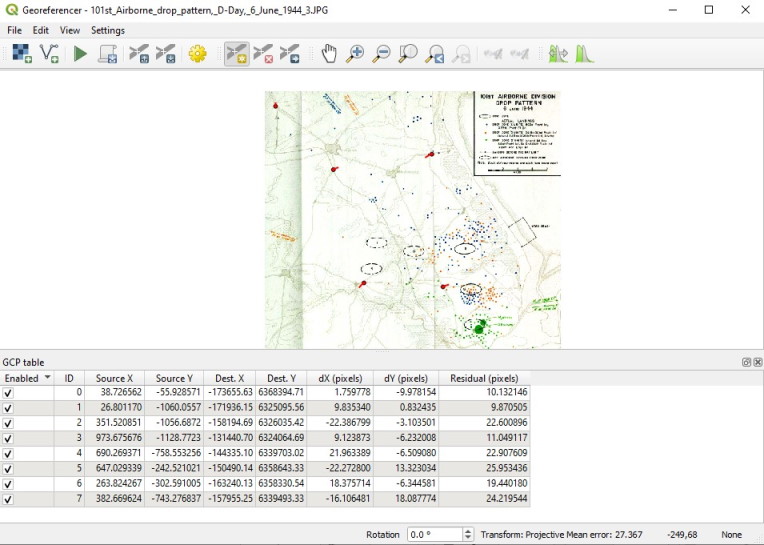

Georeferencer - all points

Before running the georeferencer, go to settings -> Transformation Settings and set the transformation type to “Helmert”. This is a good starting point as it won’t warp your image too much but does allow both translation and rotation.

If you are playing around with different georeferencing settings you may find you need to change the output filename each time to stop filename clashes.

Minimise or close the Georeferencer window to check the result. You can switch the new map layer on and off to check you are happy with the alignment.

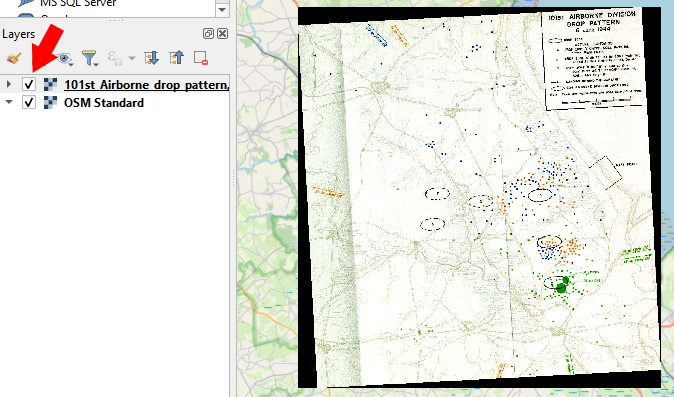

Check the map



Create Data Layer

It’s at this point we can actually start extracting the location data from the map.

For this example map of Normandy airborne landings I am interested in the individual landing points, so I will create a point layer to store the point location data.

First we create a layer by going to Layer -> Create Layer -> Add Shapefile Layer

In the Layer Settings window we set a filename, and select ‘Point’ as the Geometry type. For now we don’t need to worry about the other settings.

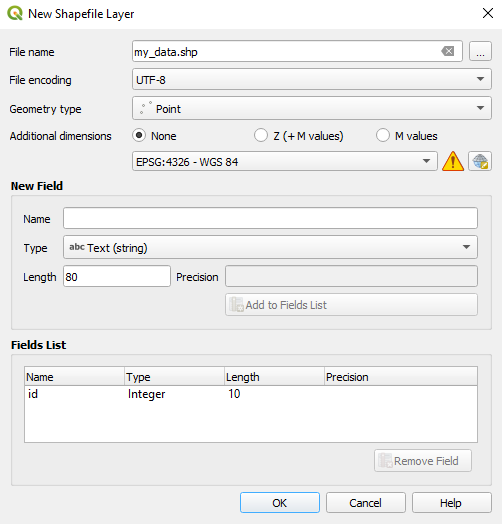

New Shapefile Layer

Create Data Points

With the layer created we can add points to it.

First we allow editing on the layer by clicking the “Toggle Editing”

Toggle Editing

Followed by “Add Point Feature”

Add Point Feature

We can simply then click on the locations where we want to record a point data item. When the option to set an ID value comes up we can just hit ok.

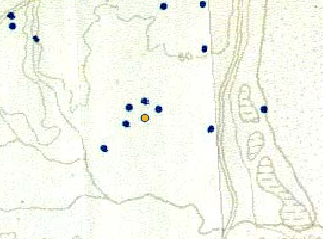

A data point

When you are finished, hit ‘Toggle Edits’ again and save the changes.

Saving the Data to a File

You can export the data layer by right clicking then going to “Export” and “Save Features As…”. You’ll see there are many different file format options.

For now we’ll export to a geojson file so we can easily inspect it in a text editor:

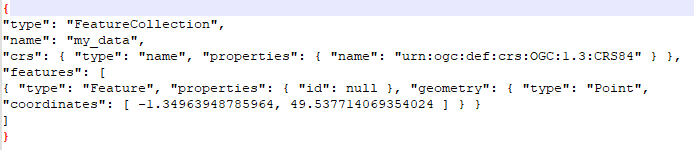

geojson data export

You can also view the geojson data on geojson.io
